Building out a Room System for level generation -- Owen Meyers

     Our game is a rogue-lite that assembles levels dynamically in order to afford maximum replayability for the player. In order to do that in as simple a system as possible, it was decided to have a registry of prebuilt rooms and to string them together randomly in order to build the floor. The result would be a balanced gameplay experience that is random every time, as the game would be built from pre-designed and balanced rooms that are strung together in a unique manner. Building this system would be relatively straightforward, as all that is needed is a list of the following -- Meshes (including transforms), lights, enemy spawn points, and colliders for doors, walls, the floor, etc.

    The first hurdle to jump over is actually building the level. I opted to utilize Blender for this, as I have a script that outputs objects and their transforms from a Blender scene. Included in this is the name of the object, allowing for mesh names to be parsed from the room as well. Thus, our levels are built in Blender and output to a text file, which then goes to the next step of the pipeline. Also within Blender, we need to be able to specify colliders and spawn points, as lights and meshes are the only things that can be parsed from Blender. It was decided that cubes with specific names would be utilized to simulate the desired values. A collider, for example, would be the cube without any rotations, and with a scale applied to it to generate the actual bounds. The transform would then be used to generate an AABB from that bounding volume. This allowed for named "meshes" to also be output from the scene, but which were actually utilized for other purposes.

    The second step of the pipeline is converting that text file into a format that works perfectly within the engine. To do this, the matrices within the text file must be matched up into a list of meshes with no repeats (i.e. every mesh must have a list of matrices, not multiple of the same mesh). This allows for the static meshes to be instanced easily within the scene. Meshes that are specifically marked as enemy spawns or colliders must be treated differently as well, output in the actual format the engine uses. Once all of this is done, the system within the engine must be able to take in the binary file and read in the constituent data. Once that is done, the rooms can be put into a pool and referenced by the level generation system in order to build out an entire floor.

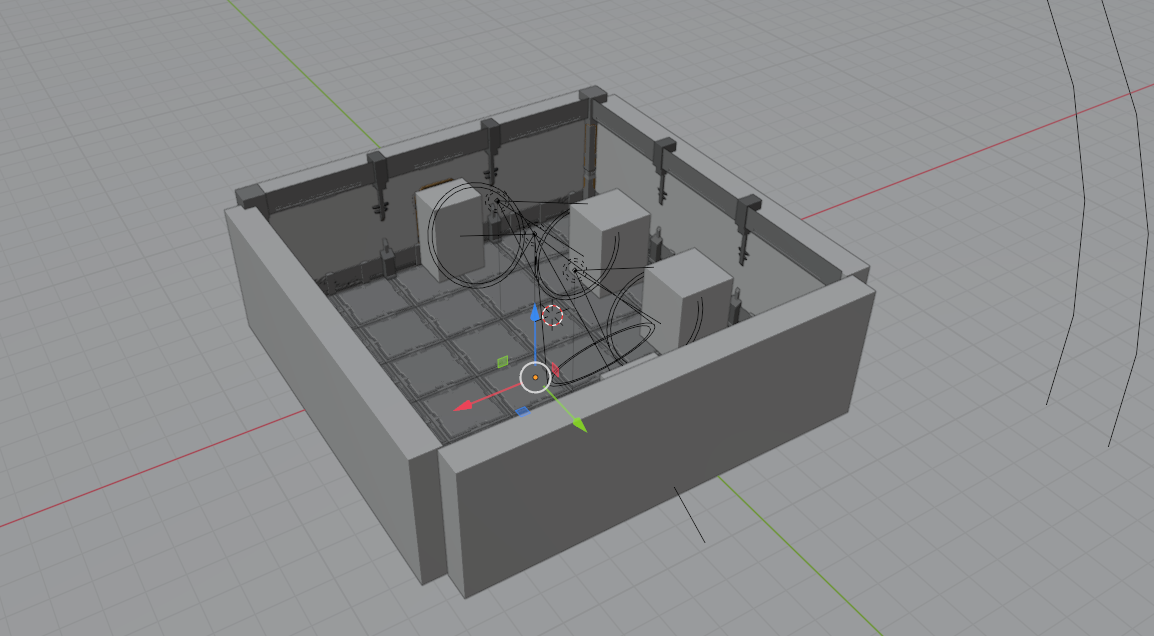

The shop room in Blender. The gray boxes are various colliders, as well as spotlights pointing at the doors.


On the left is a compiled ROOM file for the above room in Blender, generated from the text file on the left. The text file is output by Blender.
